1204 ball screw with EK EF end supports


  • 1204 ball screw with EK EF end supports
  • 1204 ball screw with EK EF end supports
  • 1204 ball screw with EK EF end supports

1204 ball screw with EK EF end supports

    Unit Price: 15 USD
    Min. Order: 1 Others
    Packaging: wooden package or cartoon
    Productivity: 2000pcs/month
    Brand: WKT
    Transportation: Ocean,Land,Air,Express
    Place of Origin: SuZhou
    Supply Ability: 2000pcs/month
    Certificate: IATF16949
    Port: Shanghai

Basic Info

Model No.: 1204

Product Description

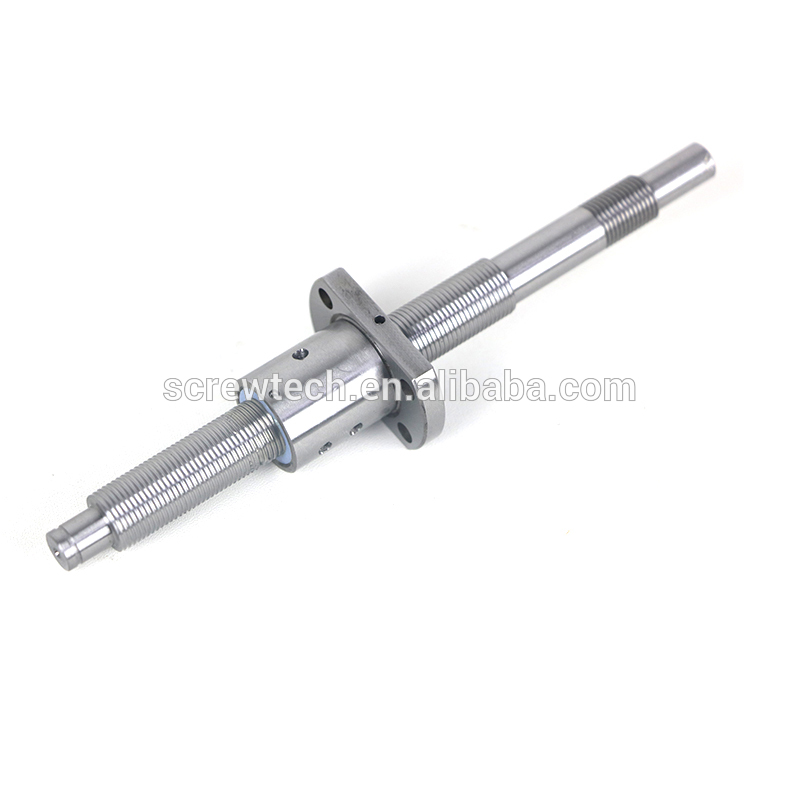

12mm Diameter Miniature Ball Screw with factory price for CNC machine

Compared with the sliding screw pair, the driving torque is 1/3. Because there are many balls in the rolling motion between the screw shaft and the screw nut of the PRTT ball screw pair, higher motion efficiency can be obtained. Compared with the previous sliding screw pair, the driving torque is less than 1/3, that is, the power required to achieve the same motion result is 1/3 of the use of the sliding screw pair. It is very helpful in the power saving environment.
Guarantee of high accuracy
The ball screw pair is continuously produced with the world's highest level of machinery and equipment made in Japan. Especially in the factory environment of grinding, assembly, and inspection, the temperature and humidity are strictly controlled. Due to perfect quality management The system enables the accuracy to be fully guaranteed.
Micro feed possible
Because the ball screw pair uses ball motion, the starting torque is very small, and there will be no crawling phenomenon like sliding motion, and it can ensure the realization of accurate micro feed.
No backlash, high rigidity
The ball screw pair can be preloaded, because the preload can make the axial gap reach a negative value, and then obtain higher rigidity (in the ball screw, the ball The repulsive force can increase the rigidity of the silk mother part).
High-speed feed possible
The ball screw pair can realize high-speed feed (motion) due to its high motion efficiency and low heat generation. [2]
Circulation method
There are two commonly used circulation methods: outer circulation and inner circulation.
The ball that sometimes comes out of contact with the screw during the cycle is called the outer loop; the ball that always keeps in contact with the screw is called the inner loop. Each closed loop of the ball is called a row, and the number of leads contained in each closed loop of the ball is called the number of turns. Each nut of the inner loop ball screw pair has 2 rows, 3 rows, 4 rows, 5 rows, etc., each row has only one turn; each row of the outer loop has 1.5 turns, 2.5 turns and 3.5 turns.
(1) Outer circulation: The outer circulation means that the balls return to the screw nut through the spiral groove or intubation on the outer surface of the nut after the circulation process is over. The return methods of the outer circulation ball screw nut pair according to the ball circulation mainly include end cap type, intubation type and spiral groove type.
In the end cap type, a longitudinal hole is machined on the nut as a return passage for the balls. The cover plates at both ends of the nut have return ports for the balls, and the balls enter the return pipe to form a cycle. Intubation type, it uses an elbow as the return pipe. This structure has good manufacturability, but because the pipe protrudes from the nut body, the radial dimension is relatively large. Spiral groove type, it is a spiral groove milled on the outer circle of the nut, the two ends of the groove are drilled with through holes and tangent to the threaded raceway to form a return channel. This structure has a smaller radial size than the cannula structure, but Manufacturing is more complicated. The outer circulation structure and manufacturing process of the outer circulation ball screw are simple and widely used. The disadvantage is that it is difficult to smooth the joints of the raceways, which affects the stability of the ball raceways.
(2) Inner circulation: Inner circulation adopts reverser to realize ball circulation. There are two types of reverser. Cylindrical convex key reverser, the cylindrical part of which is embedded in the nut, and the end is provided with a reverse groove. The reverse groove is positioned by the cylindrical outer surface and the round key on the upper end to ensure the alignment of the thread raceway direction. Flat round insert reverser, the reverser is a general round head flat key insert, the insert is embedded in the slot of the nut, and the end is opened with a reverse groove, which is positioned by the outer contour of the insert. Comparing the two inverters, the latter has a smaller size, which reduces the radial size of the nut and shortens the axial size. However, the outer contour of this kind of reverser and the dimensional accuracy of the slot on the nut are required to be higher.
Structureedit

Material
GCR15 or Stainless Steel, others available upon request
Dimension
Diameter : 12mm, Lead : 4mm
Thread Direction
Right hand ( Left hand and bi-directional all available)
Accuracy Grade
C3 C5 C7
Application
Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
Remark
Various ballnuts are available upon drawing





Why choose Screwtech

1. We Screwtech is a professional manufacturer of Ball Screws, Lead Screws. Meanwhile, Distributing Stepper Motor, Linear Guideway, AKD-Support for ball screw, Coupling, Linear Module for more than 10 years.

2. As the unique and professional original factory, we can offer you products of high quality with competitive price and fast delivery.

3. Customized service: Various models are available upon request.
4.We can produce the same size as that from HIWIN, TBI, PMI, and THK.


Features of our mini ball screw
High mechanical efficiency
Zero Axial play
Accuracy grade of C3, C5, C7
Long service life

Smooth running


Our Business Extent

1.We have business relations with clients both domestic and abroad.

In domestic,our distributor mainly located in Guangdong province,Shandong province,Jiangsu province.
2.With the high quality,good service as well as reasonable price,
We've kept steady and large exporting to Europe, Northern America, Australia,Korea and so on.


Related Parameters


SCREW TECHNOLOGY CO., LIMITED

 We SCREWTECH is the professional manafacturer of lead screw, ball screw, bearing product, linear Motion parts.
Our company has more than 14years experience on ball screw manufacturer industry and we are top3 manufacture of ball screw. Our Ball Screw can replace HIWIN, TBI, KSS, THK these brand directly.

Our main advantages are Ready stock, Customized design and Competitive price. The leading time is 7-30days for different models.
We could produce 30,000-40,000 sets of ball screws and other products every month and we have more than 2,000 items products.

Our company has passed IATF16949 Certification, which means our product can meet auto mobile industry standard, and very few Automatic Company in China have it since it is a strict standard system.

Here we want to check with your sides is there any projects we can work together.
Any feedback you can give would be greatly appreciated. Thanks!

Company Info
  • Company Name: SCREW TECHNOLOGY CO., LIMITED
  • Representative: Jeffery Yao
  • Product/Service: Ball Screw , Lead Screw , Linear Motion , Single Axis Robot , Miniature Precision Ball Screw , Linear Bearing
  • Capital (Million US $): US$1 Million
  • Year Established: 2011
  • Total Annual Sales Volume (Million US $): US$2.5 Million - US$5 Million
  • Export Percentage: 41% - 50%
  • Total Annual Purchase Volume (Million US $): US$2.5 Million - US$5 Million
  • No. of Production Lines: 20
  • No. of R&D Staff: 21 -30 People
  • No. of QC Staff: 11 -20 People
  • OEM Services Provided: yes
  • Factory Size (Sq.meters): 5,000-10,000 square meters
  • Factory Location: 5/F, Bldg. B, Baodai Sci-Tech Park,
  • Contact Person: Mr. Jonathan Qian
  • Tel: 86-0512-66903936
